Taper Roller Bearing

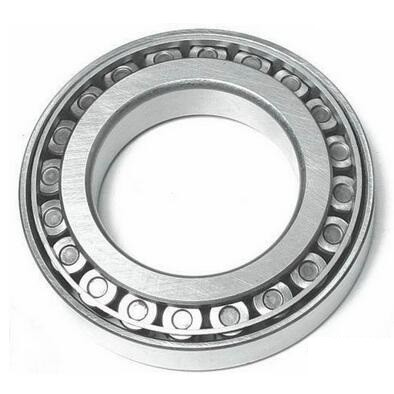

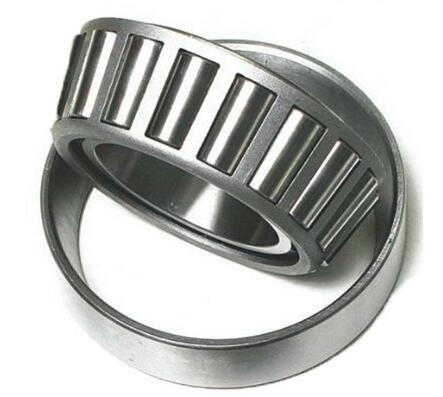

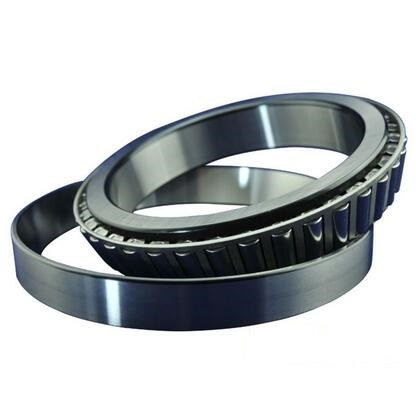

Inch Taper Roller Bearing

Model Number：Inch Taper Roller Bearing

Structure：Taper

Type：Roller

Seals Type：

INQUIRY

DIMENSION (mm)							LOADING（KN）		SPEED LIMITTED		BEARING CODE
DIMENSION (mm)									GREASE	OIL
d	D	T	B	C	rmin	r1min	Cr	Cor	R/M	R/M
15.875	42.862	14.288	14.288	9.525	1.6	1.6	17.8	17.7	1000	14000	11590/20
17.462	39.878	13.843	14.605	10.668	1.2	1.2	25.4	26	11000	14000	11749/10
19.05	45.237	15.494	16.637	12.065	1.2	1.2	29.4	30.1	9400	13000	11949/10
19.05	49.225	19.845	21.539	14.288	1.2	1.2	37.7	37.7	8900	12000	09067/195
19.05	49.225	21.209	19.05	17.462	1.2	1.6	37.7	37.7	8900	12000	09074/196
19.05	39.992	12.014	11.153	9.525	1	1.3	14.9	15.7	9500	13000	6075/6157
19.05	49.225	21.209	19.05	17.462	1.2	1.6	37.7	37.7	8900	12000	09067/196
19.05	49.225	19.845	21.539	14.288	1.5	1.3	38.5	39	8500	11000	09074/195
19.05	49.225	23.02	21.539	17.462	1.5	3.5	37.5	37	8500	11000	09074/194
20.638	49.225	19.845	19.845	15.875	1.5	1.5	37.5	39	8200	11000	12580/20
21.43	50.005	17.526	18.288	13.97	1.2	1.2	39.1	40.7	8500	11000	12649/10
21.987	45.237	15.494	16.637	12.065	1.2	1.2	30.1	34.6	8900	12000	12749/10
21.986	45.974	15.494	16.637	12.065	1.2	1.2	30.1	34.6	8900	12000	12749/11
22.225	50.005	17.526	18.288	13.97	1.2	1.2	39.1	40.7	8500	11000	12648/10
22.225	57.15	22.225	22.225	17.462	0.8	1.6	52.6	55.7	7600	10000	1280/1220
22.225	56.896	19.368	19.837	15.875	1.2	1.2	460	43.1	7600	10000	1755/1729
23.812	50.005	13.495	14.26	9.525	1.5	1	26	27.9	7600	10000	07093/196
25	50.005	13.495	14.26	9.525	1.6	1	26.7	28.8	7900	11000	07097/196
25.4	51.994	15.011	14.26	12.7	1	1.2	26.7	28.8	7900	11000	07100/204
25.4	56.896	19.368	19.837	15.875	0.8	1.3	42.5	46.5	7200	9600	1780/1729
25.4	50.292	14.224	14.732	10.668	1.2	1.2	31.2	37	7800	11000	44643/10
25.4	57.15	19.431	19.431	14.732	1.5	1.5	42.5	49	6700	9000	84584/10
25.4	61.912	19.05	20.638	14.288	0.8	2	44.6	50.7	6400	8600	15101/243
25.4	50.005	13.495	14.26	9.525	1	1	26.7	28.8	7900	11000	07100/96
25.4	51.994	15.011	14.26	12.7	1	1.2	26.7	28.8	7900	11000	07100/204
25.4	62	19.05	20.638	14.282	3.6	1.2	44.6	50.7	6400	8600	15101/245
25.4	63.5	19.05	20.638	14.288	0.8	1.2	44.6	50.7	6400	8600	15101/15250X
26.988	50.292	14.224	14.732	10.668	3.6	1.2	31.2	37	7800	1000	44649/10
28.575	57.15	19.845	19.355	15.875	3.6	1.6	48.8	57.1	7000	9300	1988/1922
28.575	68.262	22.225	22.225	17.462	0.8	1.6	51	61.1	6000	8000	02474/20
28.575	73.025	22.225	22.225	17.462	0.8	3.2	55	65.7	5500	7400	02872/20
28.575	62	19.05	20.638	14.288	0.8	1.2	44.6	50.7	6400	8600	15113/245
29	50.292	14.224	14.732	10.668	3.6	1.2	28.9	37.2	7600	10000	45449/10
30.112	62	19.05	20.638	14.288	0.1	1.2	44.6	50.7	6400	8600	15116/245
30.162	64.292	21.432	21.432	16.67	1.6	1.6	55.2	70.7	6400	8500	86649/10
30.213	68.262	22.225	22.225	17.462	2.4	1.6	56.1	71.1	6000	7900	88043/10
31.75	68.262	22.225	22.225	17.462	3.6	1.6	51	61.1	6000	8000	02475/20
31.75	69.012	19.845	19.583	15.875	3.5	1.3	44.5	55	5500	7500	14125A/14276
31.75	59.131	15.875	16.764	11.811	sp	1.2	35.8	43.1	6600	8800	67048/10
31.75	66.421	25.4	25.357	20.638	0.8	3.2	71.4	85.1	6000	8000	2580/2520
31.75	69.85	23.812	25.357	19.05	0.8	1.3	69	81.5	5700	7600	2580/2523
31.75	69.012	19.845	19.583	15.875	3.5	1.3	48.5	58	5600	7400	14125A/14276
31.75	62	18.161	19.05	14.288	sp	1.2	44.6	50.7	6400	8600	15123/245
31.57	62	19.05	20.638	14.288	0.8	1.2	44.6	50.7	6400	8600	15126/245
31.75	73.025	29.37	27.783	23.02	1.2	3.2	74.3	101	5600	7500	88542/10
33.338	68.262	22.225	22.225	17.462	0.8	1.6	56.1	71.1	6000	7900	88048/10
33.338	69.012	19.845	19.583	15.875	0.8	1.3	47	56	4800	5700	14131A/276
34.925	69.012	26.982	26.721	15.875	0.8	1.2	46.1	55	5900	7800	14136A/14276
34.925	73.025	23.812	24.608	19.05	1.6	0.8	72	87.3	5600	7400	25877/21
34.925	65.088	18.034	18.288	13.97	sp	1.2	48	58.5	6000	8000	48548/10
34.925	72.233	25.4	25.4	19.842	2.4	2.4	66.9	87.4	5700	7600	88649/10
34.98	59.131	15.875	16.764	11.938	sp	1.2	35.7	48.5	6400	8500	68149/10
34.98	59.975	15.875	16.764	11.938	sp	1.2	35.7	48.5	6400	8500	68149/11
34.988	61.973	16.7	17	13.6	1.5	1.5	37	48	5900	7900	78349A/78310A
35.717	72.233	25.4	25.4	19.842	3.6	2.4	66.9	87.4	5700	6900	88648/10
36.512	76.2	29.37	28.575	23.05	3.5	3.3	78.5	106	4800	6700	89449/10
38	63	17	17	13.5	sp	sp	43.5	58.2	6000	8000	69349/10
38.1	69.012	19.05	19.05	15.083	47.5	59.5	2.3	1.3	5300	7100	13685/21
38.1	65.088	18.034	18.288	13.97	sp	1.2	42.9	56.5	5800	7800	29748/10
38.1	65.088	18.034	18.288	13.97	2.3	1.3	43.5	57	5500	5700	29749/10
38.1	65.088	19.812	18.288	15.748	2.4	1.2	42.9	56.5	5800	7800	29749/11
38.1	79.375	29.37	29.771	23.812	3.6	3.2	87.4	105	5200	6900	3490/20
38.1	88.501	26.988	29.083	22.225	3.6	1.6	98.2	112	4900	6500	418/414
38.1	76.2	23.812	25.654	19.05	73	90.5	5.5	3.3	5100	6800	2788/2720
38.1	71.996	19	20.638	14.237	3.6	1.6	49.7	61.3	5600	7400	16150/282
38.1	82.931	23.812	25.4	19.05	0.8	0.8	77.2	100	4800	6300	25572/20
40.988	67.975	17.5	18	13.5	sp	1.5	46	62.5	5300	7000	300849/11
41.275	73.431	19.558	19.812	14.732	3.6	0.8	57.8	73	5200	7000	501349/10
41.275	73.431	21.43	19.812	14.604	3.6	0.8	57.8	73	5200	7000	501349/14
41.275	82.55	26.543	25.645	20.193	3.6	3.2	83.7	105	4900	6500	802048/11
41.275	73.025	16.667	17.462	12.7	3.6	1.6	45.9	55.8	5200	6900	18590/20
41.275	76.2	18.009	17.384	14.288	1.5	1.5	42.5	51.5	4900	6500	11162/300
41.275	76.2	22.225	23.02	17.462	3.6	0.8	66.3	83.3	5200	6900	24780/20
42.862	87.312	30.162	30.886	23.812	3.5	3.3	94	117	4400	5900	3579/25
42.862	82.931	23.812	25.4	19.05	3.6	0.8	77.2	100	4800	6300	25577/20
44.45	101.6	34.925	36.068	26.988	3.6	3.2	131	159	4000	5300	527/522
44.45	111.125	38.1	36.957	30.162	3.6	3.2	138	172	3800	5100	535/532A
44.45	82.931	23.812	25.4	19.05	3.5	0.8	76.5	99	4500	6000	25580/20
45.23	79.985	19.842	20.638	15.08	2	1.3	62	78.5	4500	6000	17887/31
45.242	77.788	19.842	19.842	15.08	3.6	0.8	57.1	73.5	4900	6500	603049/11
45.242	79.974	19.842	19.842	15	3.6	0.8	57.1	73.5	4900	6500	603049/14
45.242	77.788	21.43	19.842	16.667	3.6	0.8	57.1	73.5	4900	6500	603049/12
45.242	73.431	19.558	19.812	15.748	3.6	0.8	55.6	78.1	5100	6700	102949/10
45.613	82.931	26.988	25.4	22.225	3.5	2.3	76	98	4500	6000	25590/23
45.618	82.931	23.812	25.4	19.05	3.5	0.8	76	98	4500	6000	25590/20
45.987	74.976	18	18	14	2.4	1.6	52.6	74.6	5000	6600	503349/10
47.625	88.9	25.4	25.4	19.05	3.6	3.2	87.1	112	4400	5900	804049/10
47.625	96.838	21	21.9	15.9	0.8	0.8	80	101	3900	5200	386A/382A
50	82	21.501	12.501	17	3	0.5	71.7	97.9	4500	6000	104948/10
50.8	82.55	21.59	22.225	16.5	3.6	1.2	61.2	84.3	4500	6000	104949/11
50.8	82.931	21.59	22.225	16.51	3.5	1.3	69.5	94	4300	5700	104949/21
50.8	88.9	20.638	22.225	16.513	1.6	1.2	74.3	87.3	4400	5800	368/362A
50.8	88.9	20.638	22.225	16.513	3.6	1.2	74.3	87.3	4400	5800	368A/362A
50.8	101.6	34.925	36.068	26.988	0.8	3.2	131	159	4000	5300	529/529
50.8	101.6	34.925	36.068	26.988	3.6	3.2	131	159	4000	5300	529X/522
50.8	93.264	30.162	30.302	23.812	3.6	3.2	103	137	4200	5500	3780/3720
50.8	92.075	24.608	25.4	19.845	3.6	0.8	84.8	119	4200	5600	28580/21
50.8	90	20	22.225	20	3.5	0.8	76.5	90.5	4100	5500	368A/363
52.388	92.075	24.608	25.4	19.845	3.6	0.8	84.8	119	4200	5600	28584/21
53.975	107.95	36.512	36.957	28.575	5.6	3.2	138	172	3800	5100	539A/532X
55	90	23	23	18.5	1.6	0.5	81.4	115	4200	5500	506849/10
57.15	112.712	30.162	30.162	23.812	7.9	3.2	147	207	3300	4500	39581/20
57.15	96.838	21	21.946	15.875	2.4	0.8	80.4	101	3900	5200	387/382A
57.15	96.838	21	21.946	15.875	0.8	0.8	80.4	101	3900	5200	3875/382A
57.15	96.838	21	21.946	15.875	3.6	0.8	80.4	101	3900	5200	387A/382A
57.15	96.838	21	21.946	15.875	5.2	0.8	80.4	101	3900	5200	387AS/382A
57.15	104.75	30.162	29.317	24.605	2.4	3.2	109	144	3700	4900	462/453X
60.325	101.6	25.4	25.4	19.845	3.6	3.2	91.4	137	3700	4900	28985/20
60.325	100	25.4	25.4	19.845	3.5	3.3	91	135	3400	4800	28985/20
63.5	110	22	21.996	18.824	3.6	1.2	86.4	116	3400	4500	395/394A
63.5	123.825	38.1	36.678	30.162	3.5	3.3	161	221	3000	4000	559/552A
63.5	112.712	30.162	30.162	23.812	3.5	3.3	142	202	3200	4300	39585/20
66.675	110	22	21.996	18.824	3.6	1.2	86.4	116	3400	4500	395S/394A
66.675	122.238	38.1	38.354	29.718	3.6	1.6	191	249	3200	4300	212049/11
66.675	112.712	30.162	30.048	23.812	3.5	3.2	120	173	3200	4300	3984/20
66.675	112.712	30.162	30.162	23.812	3.6	3.2	147	207	3300	4500	39590/20
68.263	110	22	21.996	18.824	2.4	1.2	86.4	116	3400	4500	399A/394A
69.85	120	29.794	29.007	24.237	3.6	2	118	161	3200	4200	482/472
69.85	127	36.512	36.17	28.575	3.6	3.2	156	226	3000	4000	566/563
70	120	29.794	29.007	24.237	2	2	123	169	3000	4000	484/472
71.438	127	36.512	36.17	28.575	3.6	3.2	156	226	3000	4000	567A/563
73.025	112.712	25.4	25.4	19.05	3.6	3.2	97	155	3200	4300	29685/20
73.025	127	36.512	36.17	28.575	3.5	3.3	166	234	2800	3800	567/563
76.2	139.992	36.512	36.098	28.575	3.6	3.2	175	262	2700	3600	575/572
80.962	139.992	36.512	36.098	28.575	3.6	3.2	175	262	2700	3600	581/572
