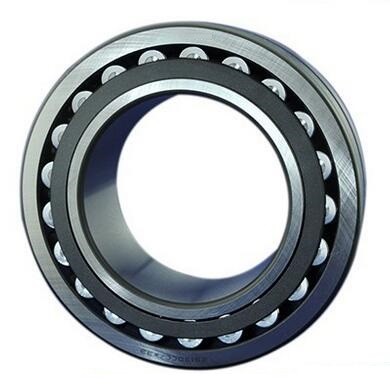

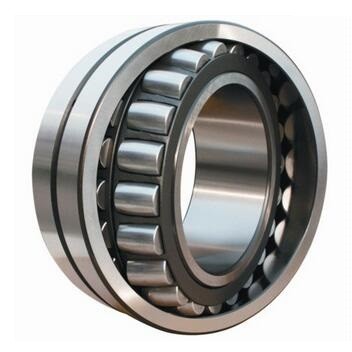

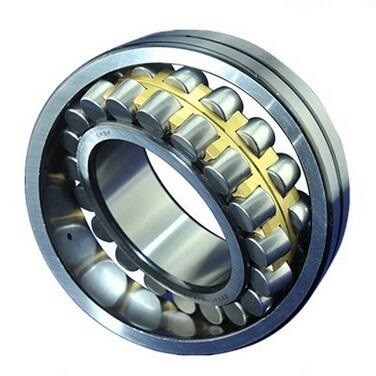

Self-Aligning Roller Bearing
Series 24
| BEARING CODE | MAIN DIMSSION(mm) | LOADING(KN) | LIMMILTED SPEED(r/min) | ASSEMBLE SIZE(mm) | ||||||||
| CYLINDRICAL | TAPERED | d | D | B | rsmin | Cr | Cor | GREASE | OIL | da(min) | Da(max) | ra(max) |
| 24020CC | 150 | 50 | 1.5 | 260 | 461 | 1200 | 1500 | 110 | 140 | 1.5 | ||
| 24122CA | 24122CAK30 | 180 | 69 | 2 | 472 | 798 | 1600 | 2000 | 120 | 170 | 2 | |
| 24122CC | 24122CCK30 | 180 | 69 | 2 | 472 | 798 | 1600 | 2000 | 120 | 170 | 2 | |
| 24024CA | 24024CAK30 | 180 | 60 | 2 | 380 | 675 | 1500 | 2000 | 130 | 170 | 2 | |
| 24024CC | 24024CCK30 | 180 | 60 | 2 | 391 | 695 | 1500 | 2000 | 130 | 170 | 2 | |
| 24124CA | 24124CAK30 | 200 | 80 | 2 | 575 | 998 | 1400 | 1800 | 130 | 190 | 2 | |
| 24124CC | 24124CCK30 | 200 | 80 | 2 | 592 | 1028 | 1400 | 1800 | 130 | 190 | 2 | |
| 24026CA | 24026CAK30 | 200 | 69 | 2 | 472 | 852 | 1400 | 1800 | 140 | 190 | 2 | |
| 24026CC | 24026CCK30 | 200 | 69 | 2 | 486 | 878 | 1400 | 1800 | 140 | 190 | 2 | |
| 24126CA | 24126CAK30 | 210 | 80 | 2 | 585 | 1030 | 1200 | 1600 | 140 | 200 | 2 | |
| 24126CC | 24126CCK30 | 210 | 80 | 2 | 603 | 1061 | 1300 | 1700 | 140 | 200 | 2 | |
| 24028CA | 24028CAK30 | 210 | 69 | 2 | 488 | 895 | 1200 | 1600 | 150 | 200 | 2 | |
| 24028CC | 24028CCK30 | 210 | 69 | 2 | 503 | 922 | 1300 | 1700 | 150 | 200 | 2 | |
| 24128CA | 24128CAK30 | 225 | 85 | 2.1 | 670 | 1200 | 1100 | 1500 | 152 | 213 | 2.1 | |
| 24030CA | 24030CAK30 | 225 | 75 | 2.1 | 570 | 1070 | 1100 | 1400 | 162 | 213 | 2.1 | |
| 24032CA | 24032CAK30 | 240 | 80 | 2.1 | 652 | 1230 | 1000 | 1300 | 172 | 228 | 2.1 | |
| 24132CA | 24132CAK30 | 270 | 109 | 2.1 | 1040 | 1880 | 900 | 1200 | 172 | 258 | 2.1 | |
| 24034CA | 24034CAK30 | 260 | 90 | 2.1 | 792 | 1520 | 900 | 1200 | 182 | 248 | 2.1 | |
| 24134CA | 24134CAK30 | 280 | 109 | 2.1 | 1070 | 1930 | 900 | 1200 | 182 | 268 | 2.1 | |
| 24134CA | 24134CAK30 | 280 | 109 | 2.1 | 1070 | 1930 | 900 | 1200 | 182 | 268 | 2.1 | |
| 24036CA | 24036CAK30 | 280 | 100 | 2.1 | 928 | 1820 | 800 | 1000 | 192 | 268 | 2.1 | |
| 24036CC | 24036CCK30 | 280 | 100 | 2.1 | 955 | 1870 | 950 | 1200 | 192 | 268 | 2.1 | |
| 24136CA | 24136CAK30 | 300 | 118 | 3 | 1210 | 2220 | 800 | 1000 | 194 | 286 | 2.5 | |
| 24038CA | 24038CAK30 | 290 | 100 | 2.1 | 975 | 1910 | 800 | 1100 | 202 | 278 | 2.1 | |
| 24138CA | 24138CAK30 | 320 | 128 | 3 | 1410 | 2590 | 700 | 1000 | 204 | 306 | 2.5 | |
| 24040CA | 24040CAK30 | 310 | 109 | 2.1 | 1120 | 2220 | 670 | 850 | 212 | 298 | 2.1 | |
| 24140MB | 24140MBK | 340 | 140 | 3 | 1480 | 2550 | 700 | 900 | 214 | 326 | 2.5 | |
| 24140CA | 24140CAK30 | 340 | 140 | 3 | 1620 | 3030 | 800 | 1000 | 214 | 326 | 2.5 | |
| 24044CA | 24044CAK | 340 | 118 | 3 | 1370 | 2760 | 750 | 1000 | 234 | 326 | 2.5 | |
| 24144CA | 24144CAK | 370 | 150 | 4 | 1900 | 3580 | 700 | 950 | 238 | 352 | 3 | |
| 24048CA | 24048CAK | 360 | 118 | 3 | 1440 | 2930 | 700 | 950 | 254 | 346 | 2.5 | |
| 24148CA | 24148CAK | 400 | 160 | 4 | 2160 | 4090 | 670 | 850 | 258 | 382 | 3 | |
| 24052CA | 24052CAK | 400 | 140 | 4 | 1840 | 3850 | 630 | 850 | 278 | 382 | 3 | |
| 24152CA | 24152CAK | 440 | 180 | 4 | 2730 | 5330 | 600 | 800 | 278 | 422 | 3 | |
| 24056CC | 24056CCK | 420 | 140 | 4 | 1960 | 4100 | 600 | 800 | 298 | 402 | 3 | |
| 24156CA | 24156CAK | 460 | 180 | 5 | 2810 | 5480 | 560 | 750 | 302 | 438 | 4 | |
| 24060CA | 24060CAK | 460 | 160 | 4 | 2430 | 5160 | 530 | 700 | 318 | 442 | 3 | |
| 24064CA | 24064CAK | 480 | 160 | 4 | 2500 | 5150 | 550 | 650 | 338 | 462 | 3 | |
| 24068CA | 24068CAK | 520 | 180 | 5 | 2500 | 5680 | 540 | 680 | 362 | 498 | 4 | |
| 24172CA | 24172CAK | 600 | 243 | 5 | 5550 | 8400 | 310 | 380 | 382 | 578 | 4 | |
| 24076CA | 24076CAK | 560 | 180 | 5 | 3200 | 6950 | 480 | 590 | 402 | 538 | 4 | |
| 24080CA | 24080CAK | 600 | 200 | 5 | 3600 | 7850 | 450 | 560 | 422 | 578 | 4 | |
| 24084CA | 24084CAK | 620 | 200 | 5 | 3400 | 8500 | 220 | 400 | 442 | 598 | 4 | |
| 24092CA | 24092CAK | 680 | 218 | 6 | 4250 | 9150 | 350 | 440 | 488 | 652 | 5 | |
| 24192CA | 24192CAK | 760 | 300 | 7.5 | 6150 | 1450 | 170 | 210 | 496 | 724 | 6 | |
| 241/600CA | 241/600CAK | 980 | 375 | 7.5 | 8800 | 21700 | 110 | 160 | 636 | 944 | 6 | |
