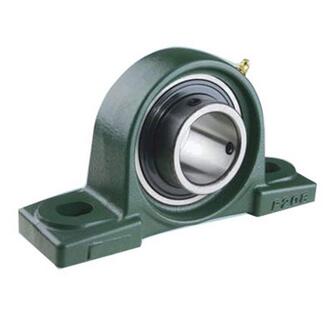

Pillow Block Bearing
P Series
| Housing No. | Dimensions mm | Weight (kg) | |||||||||
| Da | h | a | e | g | w | b | Be | s1 | s2 | ||
| P201 | 47 | 30.2 | 127 | 95 | 14 | 62 | 38 | 17 | 13 | 19 | 0.33 |
| P202 | 47 | 30.2 | 127 | 95 | 14 | 62 | 38 | 17 | 13 | 19 | 0.33 |
| P203 | 47 | 30.2 | 127 | 95 | 14 | 62 | 38 | 17 | 13 | 19 | 0.33 |
| P204 | 47 | 33.3 | 127 | 95 | 14 | 65 | 38 | 17 | 13 | 19 | 0.46 |
| P205 | 52 | 36.5 | 140 | 105 | 15 | 71 | 38 | 17 | 13 | 19 | 0.6 |
| P206 | 62 | 42.9 | 165 | 121 | 17 | 83 | 48 | 19 | 17 | 21 | 0.97 |
| P207 | 72 | 47.6 | 167 | 127 | 18 | 93 | 48 | 20 | 17 | 21 | 1 |
| P208 | 80 | 49.2 | 184 | 137 | 18 | 98 | 54 | 21 | 17 | 21 | 1.3 |
| P209 | 85 | 54 | 190 | 146 | 20 | 106 | 54 | 22 | 17 | 20 | 1.4 |
| P210 | 90 | 57.2 | 206 | 159 | 21 | 114 | 60 | 23 | 20 | 25 | 1.83 |
| P211 | 100 | 63.5 | 219 | 171 | 23 | 126 | 60 | 24 | 20 | 25 | 2.4 |
| P212 | 110 | 69.8 | 241 | 184 | 25 | 138 | 70 | 26 | 20 | 25 | 2.8 |
| P213 | 120 | 76.2 | 265 | 203 | 27 | 151 | 70 | 27 | 25 | 29 | 3.5 |
| P214 | 125 | 79.4 | 266 | 210 | 27 | 157 | 72 | 29 | 25 | 31 | 4.45 |
| P215 | 130 | 82.6 | 275 | 217 | 28 | 163 | 74 | 30 | 25 | 31 | 4.9 |
| P216 | 140 | 88.9 | 292 | 232 | 30 | 175 | 78 | 32 | 25 | 31 | 5.8 |
| P217 | 150 | 95.2 | 310 | 247 | 32 | 187 | 83 | 34 | 25 | 31 | 6.9 |
| P218 | 160 | 101.6 | 327 | 262 | 33 | 200 | 88 | 36 | 27 | 33 | 8.1 |
